Denver, South Park and Pacific Railroad
DSP&P Waycars: Hiatory, Photos, Plans

DSP&P waycars, or cabooses, were 4-wheel "bobbers" with a curved roof profile, no cupola, and two windows on each side. They could sleep two people but were mainly used for the conductor's office work. They were painted white with black lettering or oxide red with white lettering, apparently at random. Both colours can be seen on some trains. They varied in many details as they were built in small batches across a 5 year period. Length over the body varied between 12 and 13 feet with overall length over end platforms of 18 to 19 feet. Outside width was about 7'-9" with the platforms about 29" above the rails, and the roof about 7'-4" above that.

Below is my simplified roster of DSP&P waycars, based on Robert Grandt's Roster Lists from Narrow Gauge Pictorial Volume VIII. Since many of C&S cabooses are well documented, you can use some dimensions and details to work backward to specific DSP&P waycars. Build dates are approximations and various sources disagree with each other.


DSP&P RR WAYCARS   1874 - 1912

ORIG # TYPE 1885++ C&S 1899 C&S 1912 LENGTH MFG BUILT
60 Waycar 1500 303 1002 18-19 DSP 1879
61 Waycar == == == 18-19 DSP 1879
62 Waycar == == == 18-19 DSP 1880
63 Waycar 1501 == == 18-19 DSP 1880
64 Waycar 1502 == == 18-19 DSP 1880
65 Waycar 1503 304 1003 18-19 DSP 1881
66 Waycar 1504 == == 18-19 DSP 1881
67 Waycar 1505 305 1004 18-19 DSP 1881
68 Waycar 1506 == == 18-19 DSP 1882
69 Waycar 1507 306 1005 18-19 UP 1882
70 Waycar 1508 307 == 18-19 UP 1882
71 Waycar 1509 == == 18-19 UP 1882
72 Waycar 1510 == == 18-19 UP 1882
73 Waycar 1511 308 1006 18-19 UP 1882
74 Waycar 1512 == == 18-19 UP 1883
75 Waycar 1513 309 1007 18-19 UP 1883
76 Waycar 1514 310 1008 18-19 UP 1883
77 Waycar 1515 311 == 18-19 UP 1883
78 Waycar 1516 312 1009 18-19 UP 1883
79 Waycar 1517 == == 18-19 UP 1884
80 Waycar 1518 313 1010 18-19 UP 1884
81 Waycar 1519 314 1011 18-19 UP 1884
82 Waycar 1520 == == 18-19 UP 1884


HISTORY
Dates in the above table vary according to source. There is also doubt about which two waycars went missing before 1885 - probably 2 of numbers 61, 62, 63, or 64.

Colorado Central also contributed waycars to the C&S, CC #1725 and 1726 became UPD&G #61 and 62 in 1897. #63 was built and the three became C&S #300, 301, and 302 in 1899-1900. The first two survived to 1912 and became C&S #1000 and 1001.


Accucraft waycar #60 on the author's garden railway. This brass model and the Hartford Products wood kit are the only accurate large scale waycars available. See all my motley collection of waycars HERE.


  The author's 1:1 scale replica of DSP&P Waycar #60 is used to store the outdoor railway
            trains when not in use, as well as buildings and  scenery in winter. More HERE.


PHOTO GALLERY


DSP&P Waycar #72 (white with black lettering) with Mason Bogie #42


DSP&P Waycar #69 (boxcar red with white lettering) with two flat cars and Tiffany reefer.

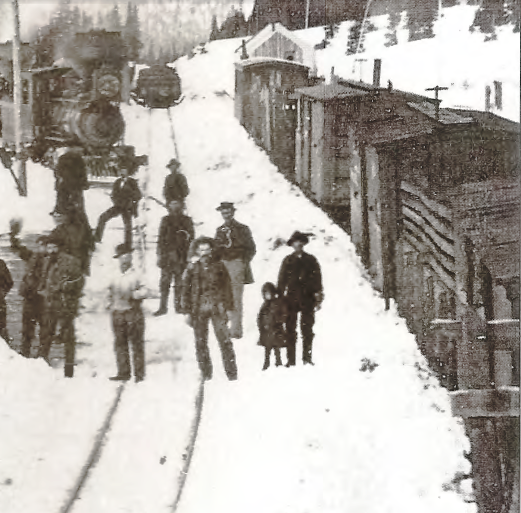

DSP&P work train in 1881 with dark coloured waycar at the rear.

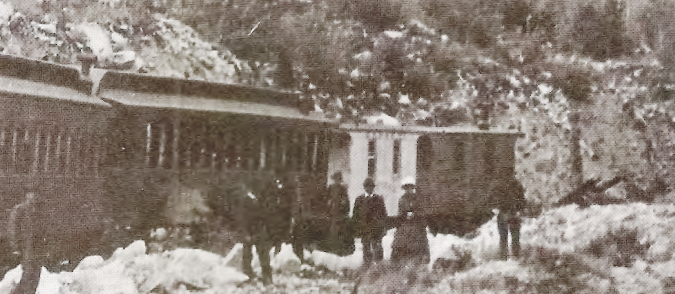

White and red waycars at Georgetown Loop high Bridge.


DSP&P Waycar on the tail


Hartford Products craftsman kit for DSP&P Waycar #72, 1:20.3 Scale




DSP&P

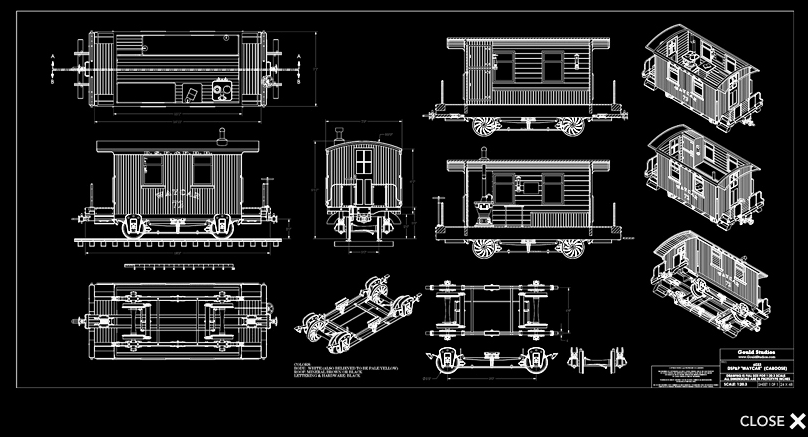

Waycar #72 CAD image by Bill Gould. See Bill's website for many more images, exact-scale plans, and fine art prints for sale.



PLANS by John Maxwell

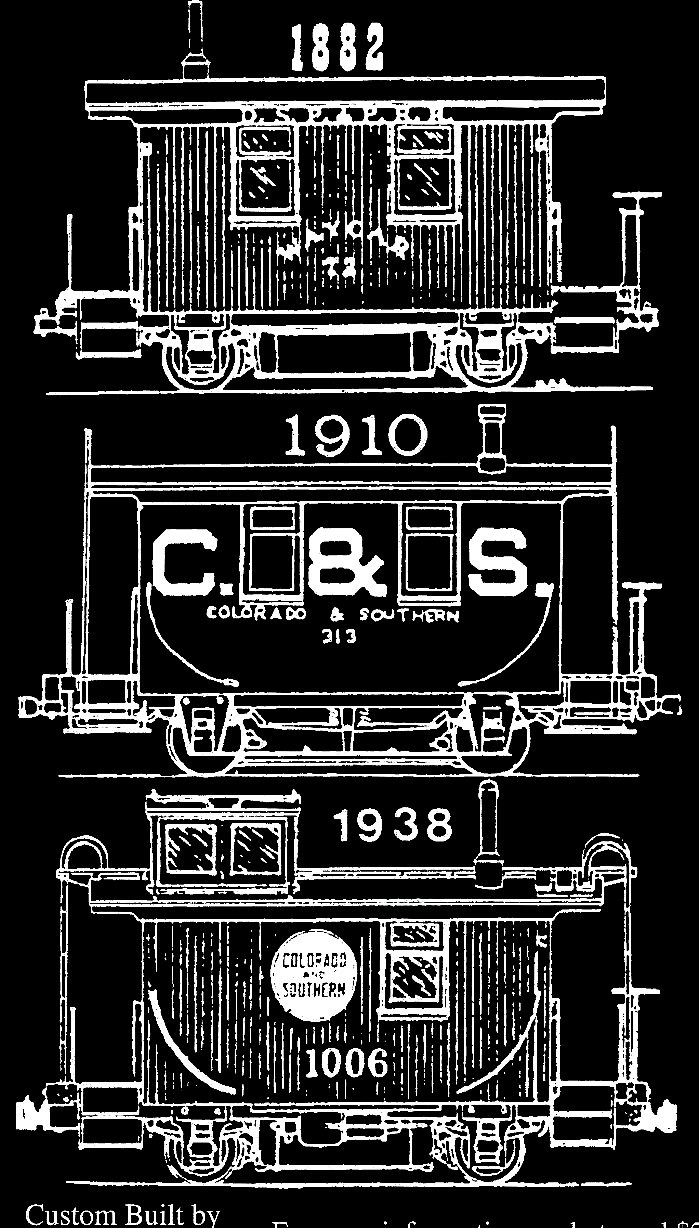

C&S Cabooses Rebuilt From DSP&P Waycars 69, 76



DSP&P Cabooses 69, 76, 73, 75,
C&S Cabooses 1005 (307), 1008 (310), 1006 (308), 1007 (309)




C&S FOLIOS

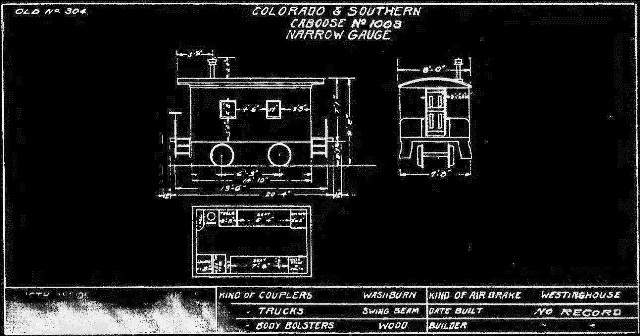

DSP&P Waycar #65 (later DL&G #1503)
Then C&S 304 (later 1003)  before cupola was installed

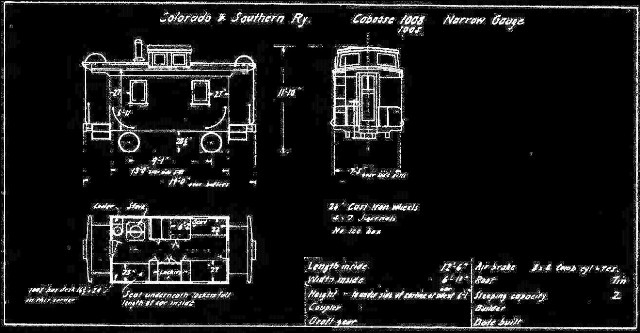

DSP&P Waaycar #69 (later DL&G #1507) and DSP&P #76 (later DL&G #1514)
Then C&S 306 (later 1005) and C&S 310 (later 1008)

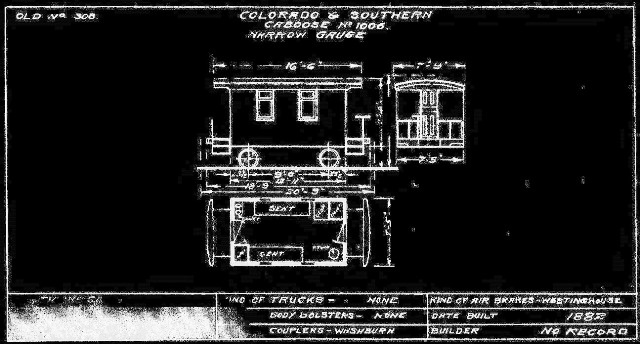

DSP&P Waycar #73 (later DL&G #1511)
Then C&S 308 (later 1006)

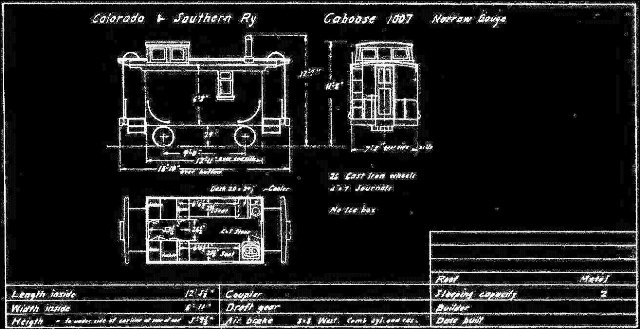

DSP&P Waycar #75 (later DL&G #1513)
Then C&S 309 (later 1007)



PLANS by Others

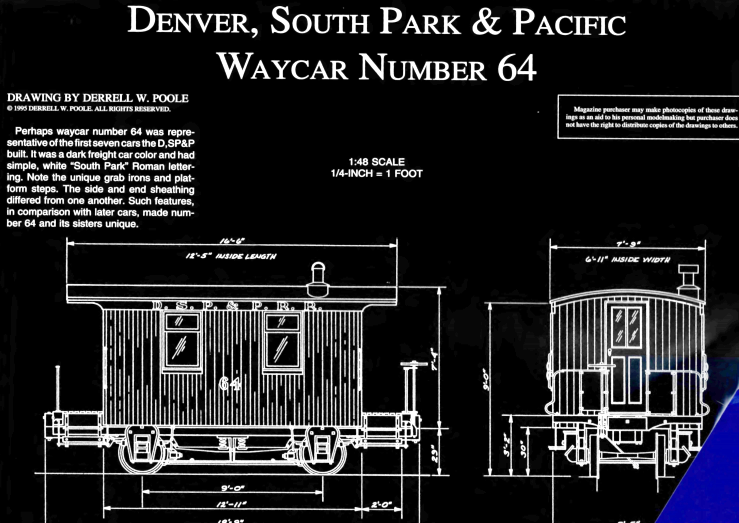

DSP&P Waycar #64


DSP&P Waycar #6?

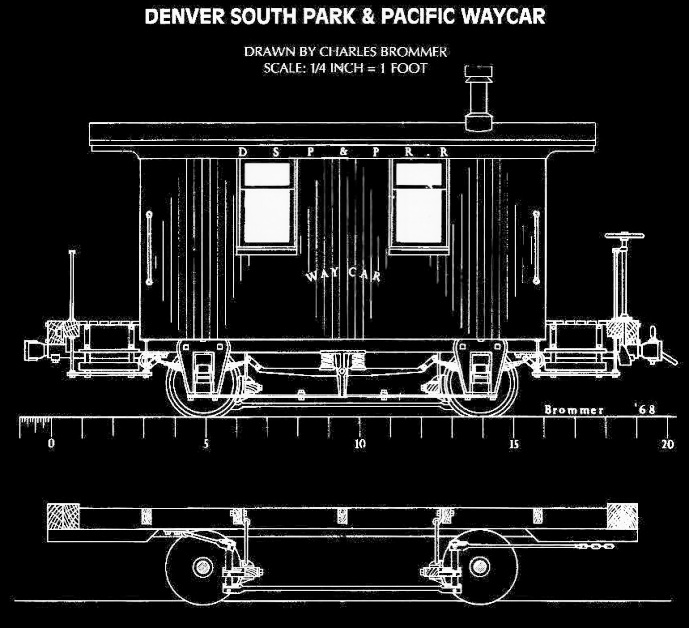

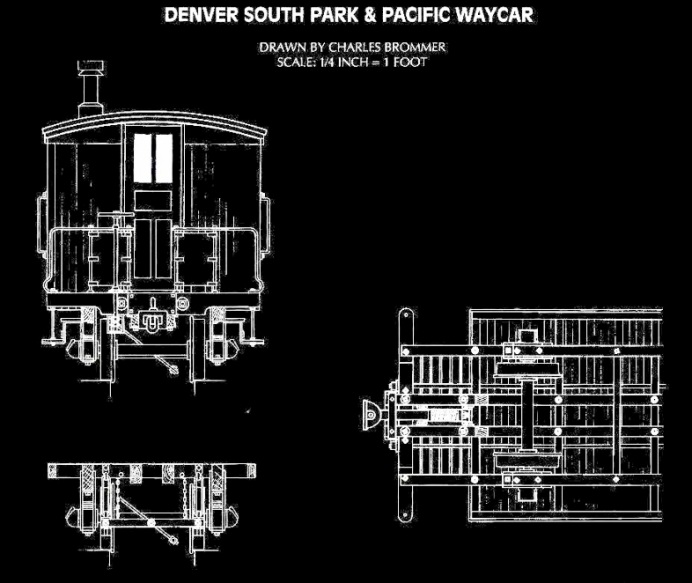

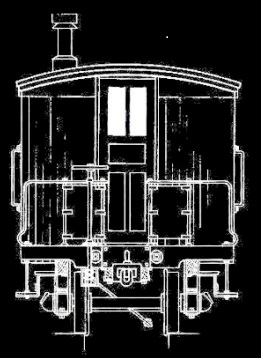

DSP&P Waycar #73

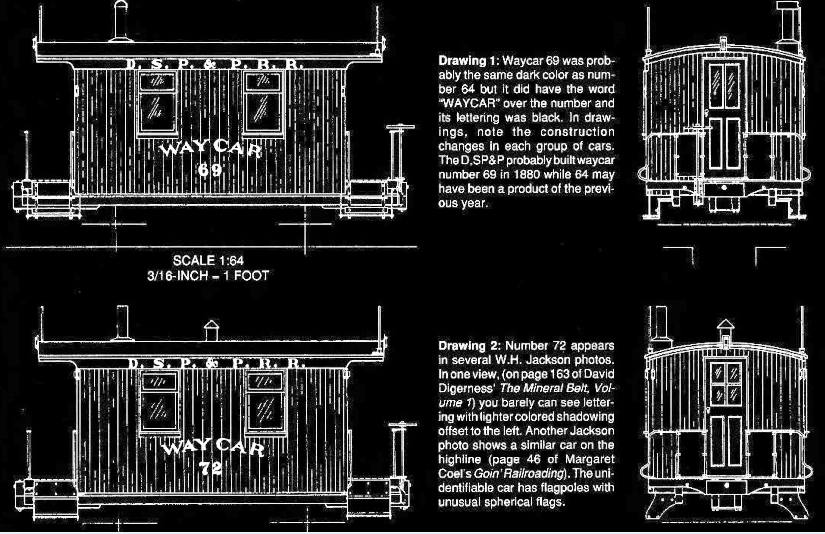

DSP&P Waycar #69 and #72

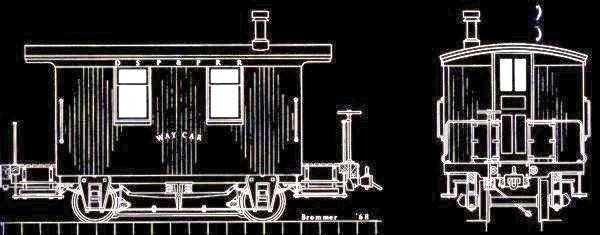

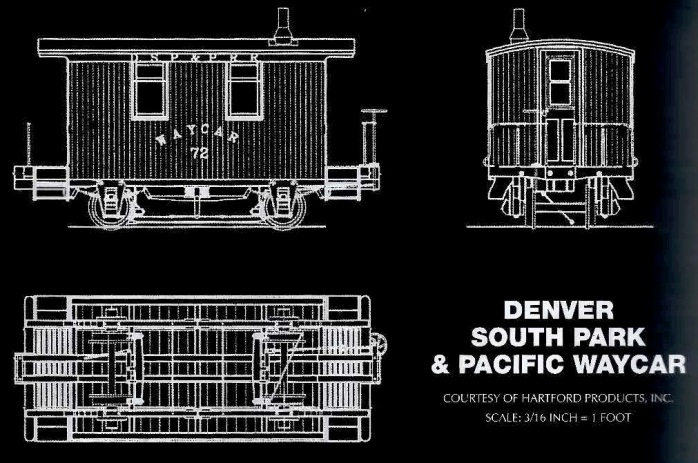

DSP&P Waycar #72

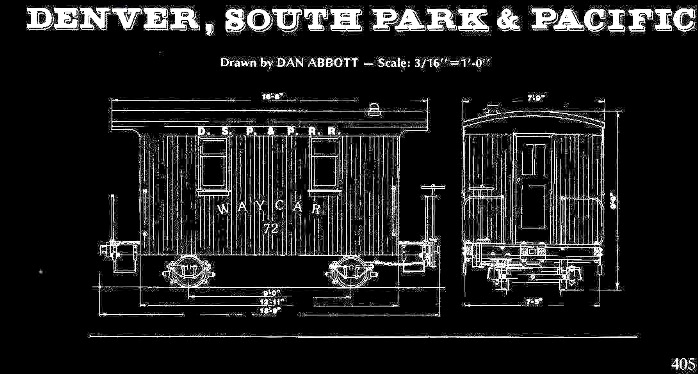

DSP&P Waycar #72


DSP&P Waycar #72


DSP&P Waycar #7? Part 1


DSP&P Waycar #7? Part 2

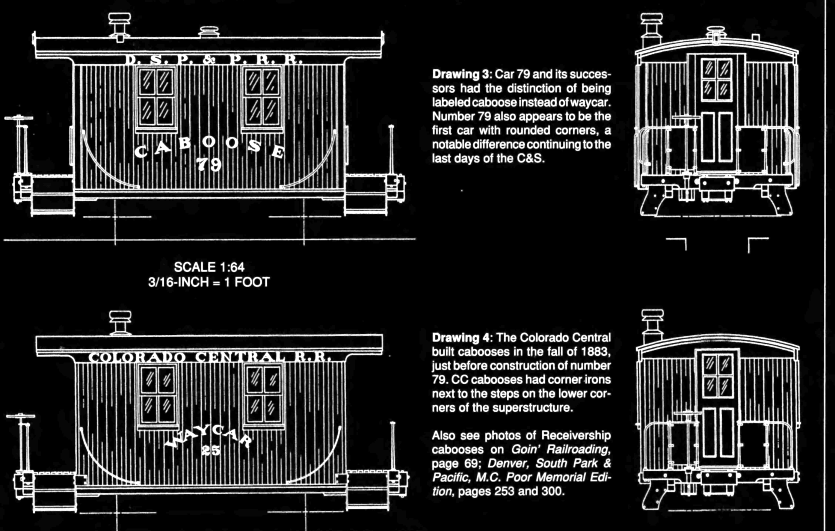

DSP&P Waycar #79 and CC #25


DSP&P Waycar #72
